AK1200
100034
New product
2026-12-31
Warning: Last items in stock!
Availability date:
>>สินค้าจัดส่งจาก กทม
>>ช่างบริการ/ติดตั้ง จาก กทม

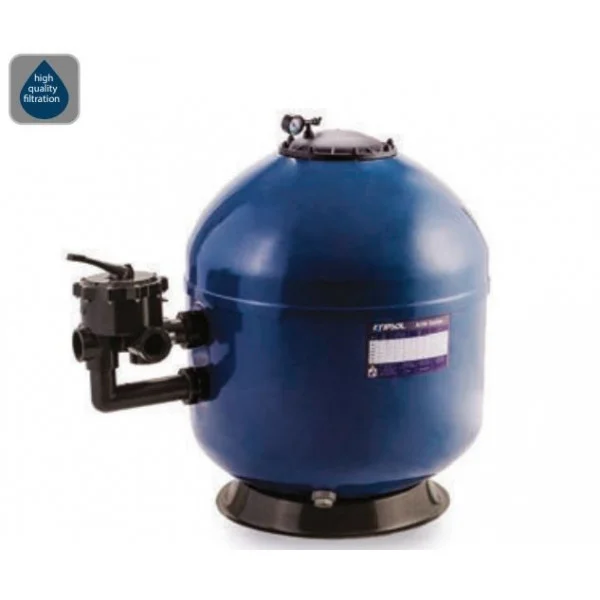

ถังกรองทราย Kripsol AK1200.c
✓A quality solution available in Side and Top versions
✓6-way valve included
✓Optimal distribution of water over the bed, thanks to the Dual-Side diffuser
✓Quick-connect collector arms, easy to replace
✓Internal monoblock element, without slip fittings
✓Wide drain, no tools required for opening, easy maintenance
✓Usage: for residential pools up to 189 m³
| SPECIFICATIONS | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref | Connection | Filtration area (m²) | Flowrate (m³/h) | Sand (kg) | Vitrafil | Pools up to (m³) | Dimensions (mm) | Vol (m³) | Vol (m³) | ||||
| A | B | C | D | E | |||||||||
| AK400 | 1.5" | 0.13 | 6.5 | 50 | 40 | 39 | 225 | 350 | 665 | 458 | 300 | 11 | 0.127 |
| AK520 | 1.5" | 0.21 | 10.5 | 100 | 90 | 63 | 305 | 430 | 775 | 458 | 300 | 15.5 | 0.242 |
| AK640 | 1.5" | 0.32 | 16 | 150 | 135 | 96 | 315 | 440 | 860 | 458 | 300 | 21 | 0.366 |
| AK680 | 2" | 0.36 | 19 | 175 | 150 | 114 | 320 | 455 | 900 | 605 | 300 | 25 | 0.406 |
| AK760 | 2" | 0.45 | 22.5 | 225 | 200 | 135 | 365 | 455 | 900 | 605 | 300 | 31 | 0.608 |
| AK900 | 2" | 0.63 | 31.5 | 325 | 290 | 189 | 365 | 505 | 900 | 605 | 300 | 40 | 0.902 |
| Technical Specifications | |
|---|---|
| Max. water temp | 50 ºC |
| Operating pressure | 0.5 - 1.3 bar |
| Maximum pressure | 1.6 bar |
| Connection | 1.5" (ø 520 mm - ø 640 mm) 2" (ø 760 mm - ø 900 mm) |
| Tank / Arms / Unions / Cover | Polyester with F.G./PP/ABS/PP |
| Granulometry of filter material | 0.4 - 0.8 mm |
