อะไหล่ NT-UV130-TF
EmauxPART-UV130
1536
New product
2025-12-15
>>สินค้าจัดส่งจาก กทม
>>ช่างบริการ/ติดตั้ง จาก กทม
Rating
อะไหล่ NT-UV130-TF
“EMAUX” NT-UV Series Nano Tech UV-C System

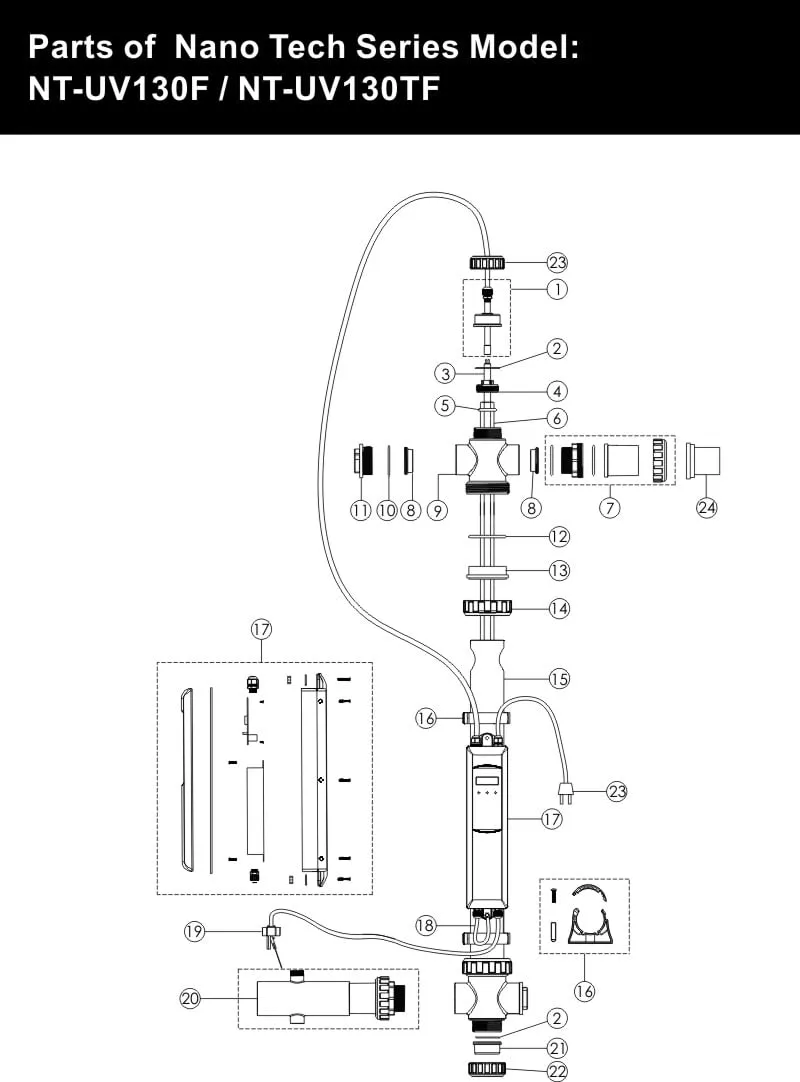

Parts of NT-UV130-F-TF
| KEY NO. | PART NO. | DESCRIPTIONS | QTY | RETAIL PRICE 2025 |
|---|---|---|---|---|
| 1 | E30423 | End Cap for Cable Hole With Epoxy | 1 | 2,200.00 |
| 2 | 11104015 | Lamp Connector O'ring | 2 | 80.00 |
| 3 | E30428 | 130W UV lamp | 2 | 23,500.00 |
| 4 | 440301156 | UV lamp Adaptor | 2 | 80.00 |
| 5 | 11030020 | Quartz O'ring (d30x26) | 2 | 80.00 |
| 6 | E930430 | Quartz Tube for 130W | 1 | 1,100.00 |
| 7 | E90201 | Pipe connection 2" | 2 | 480.00 |
| 8 | 620125430 | Adaptor | 4 | 80.00 |
| 9 | 620060156 | 316 Cross | 2 | 380.00 |
| 10 | 11142488 | Connector O'ring | 2 | 80.00 |
| 11 | 430501015 | Sensor Lid | 1 | 180.00 |
| 12 | 11142485 | UV head O'ring (D76*S6) | 2 | 150.00 |
| 13 | 620165430 | Body connection | 2 | 150.00 |
| 14 | 430170986 | Union Nut | 2 | 150.00 |
| 15 | 620145462 | Stainless Steel body | 1 | 5,280.00 |
| 16 | E30404 | Closed pipe clips | 1 | 180.00 |
| 17.1 | E30413 | UV Eeb-Ballast | 1 | 15,350.00 |
| 17.2 | E30414 | UV Eeb-Ballast set | 1 | 17,500.00 |
| 18 | E30407 | Earth Connection | 1 | 310.00 |
| 19 | 114145332 | Flow Switch | 1 | 2,420.00 |
| 20 | E30434 | Pipe fittings | 1 | 200.00 |
| 21 | 620135460 | Cap | 1 | 80.00 |
| 22 | 430170635 | Union Nut 1.5" | 1 | 150.00 |
| 23 | 105021209 | Plug head | 1 | 390.00 |
| 24 | 430040156 | 1.5" union (Hope tai/Me inie) | 1 | 150.00 |
Note:
For a complete ballast box, please order items 1, 17, 18, 19, 23 together.
