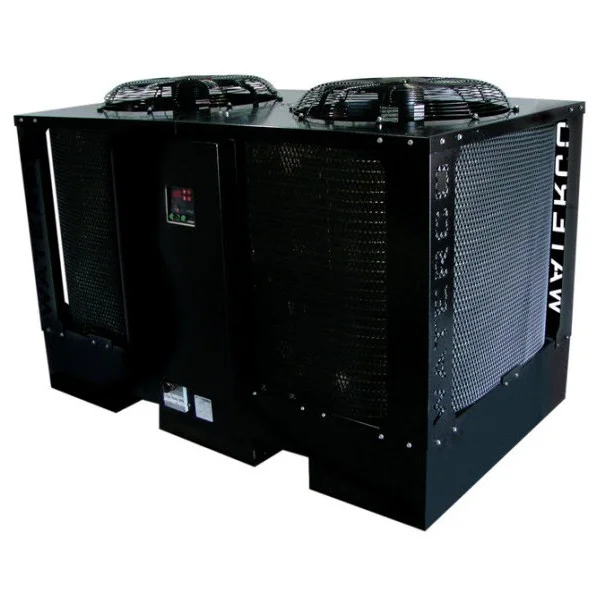

เครื่องทำน้ำอุ่นสระว่ายน้ำ Waterco ElectroHeat Pro 97Kw
Waterco27883803
10011135
New product
2025-12-15
>>สินค้าจัดส่งจาก กทม
>>ช่างบริการ/ติดตั้ง จาก กทม
Rating
Waterco ElectroHeat Pro 100Kw
| Specifications | |
|---|---|
| Model Number | PRO100 |
| Nominal Heating Capacity | 97KW (331,000 BTU) |
| Test Lab (26/26/80) | 97KW (331,000 BTU) |
| Test lab (15/26/70) | 67 kW (229,000 BTU) |
| Test Lab (10/26/63) | 58 kW (198,000 BTU) |
| Compressor (HP) | (2 x) 11HP |
| Manufacturer | Sanyo |
| Compressor number | C-SCP360H38A |
| Water Flow & Plumbing Characteristics | |
| Water Bypass Type | Ext. Field Install |
| Min./Max. Water Flow Rate (LPM) | 500-680 |
| Min./Max. Water Inlet Temperature (°C) | 14° - 40° |
| Plumbing Connection Size (Slip) | 80mm / 3” PVC |
| Electrical Characteristics | |
| 50Hz Dual Rated Supply Voltage (VAC) | 380-415V |
| Supply Voltage Phase | 3 |
| Unit run current (AMP) | 29.5 |
| Power consumption (kW) | 16.12 |
| Coefficient of Performance @ 26/26/80 (COP)* | 6.4 |
| Min./Max. Air Inlet Temperature (°C) | 6° / 40° |
| Refrigerant Characteristics | |
| Refrigerant Type | R-410A |
| Physical Characteristics | |
| Cabinet Construction | Powder coat sheet metal |
| Color | Black |
| Weight (kg.) | 453 |

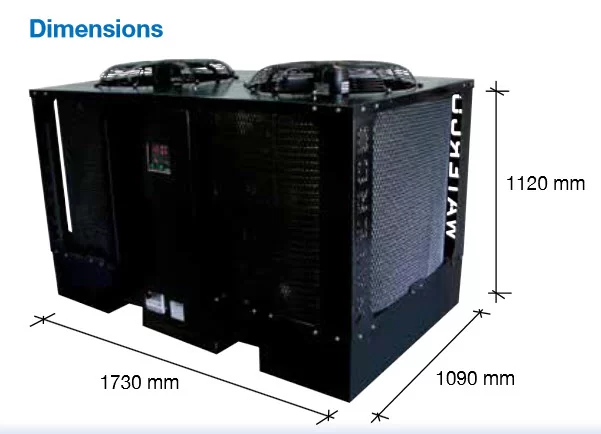

| Dimensions (mm) | 1730W-1090L –1120H |
| Noise Emission Characteristics | |
| Noise Emission (dBA) | 69 @ 1metre & 59 @ 3 metres |
| ** (26/26/60) = Air Temp: 26° / Water Temp 26° / Humidity 60% | |
 | Fans
|
 | Evaporators
|
 | Compressor
|
 | Control Panel
|
 | Heat Exchangers
|
 | Water Connection
|
 | Electrical Connections
|
 | Cabinet
|

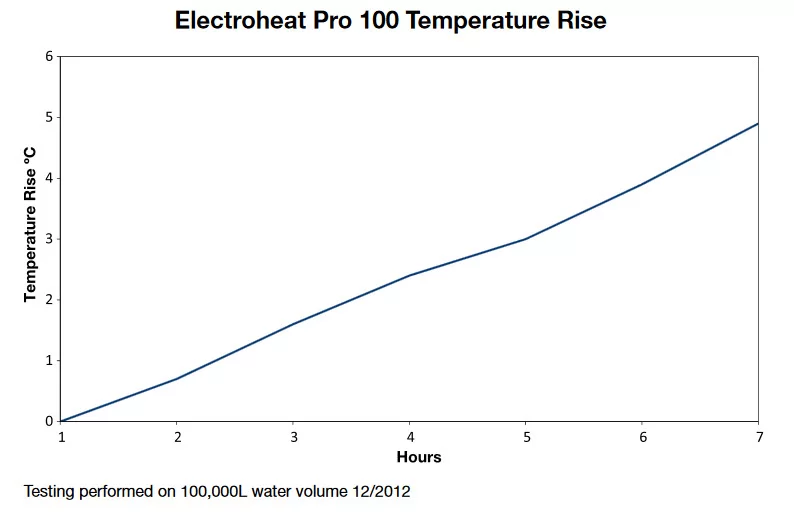

Cost Effective Heating
Save up to 50% over natural gas, 80% over propanegas and 500% over electric element pool heater running costs compared to heat pumps.
