อะไหล่ปั๊ม Emaux SC
Emaux
10010859
New product
2026-12-31
Instock
>>สินค้าจัดส่งจาก กทม
>>ช่างบริการ/ติดตั้ง จาก กทม
Rating
Description
อะไหล่ปั๊ม Emaux SC
อะไหล่ปั๊ม Emaux SC 075
อะไหล่ปั๊ม Emaux SC100
อะไหล่ปั๊ม Emaux SC 150
อะไหล่ปั๊ม Emaux SC 200
อะไหล่ปั๊ม Emaux SC

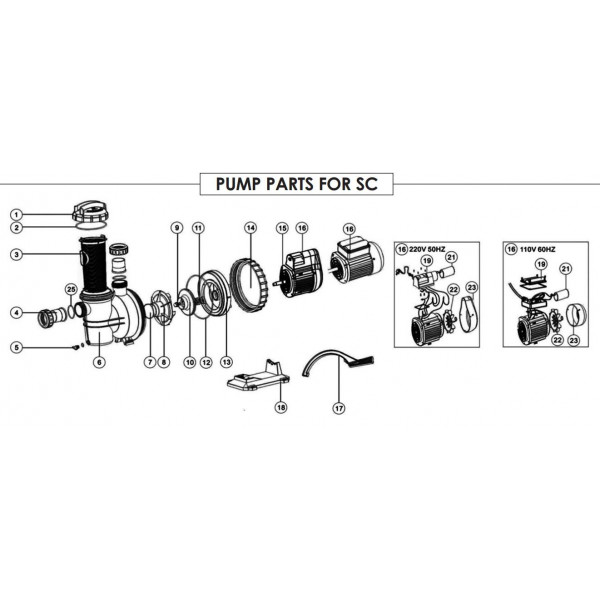

SC Series Pump Replacement Parts
| KEY NO. | PART NO. | DESCRIPTIONS | PIECE(S) REQUIRED | RETAIL PRICE 2025 |
|---|---|---|---|---|
| 1 | 01041043 | Transparent Lid | 1 | 660.00 |
| 2 | 02021088 | O-Ring for Lid | 1 | 280.00 |
| 3 | 01111076 | Basket (Big) | 1 | 280.00 |
| 4* | 89280105 | 1.5" Union (Black / White Colour) | 2 | 540.00 |
| 5 | 89021307 | Drain Plug With O-Ring | 1 | 150.00 |
| 6 | 01111006 | SC Pump Body | 1 | 5,500.00 |
| 7 | 01111004 | SCB Pump Body | 1 | 5,522.00 |
| 8-1 | E190137 | 2" Union | 2 | 1,090.00 |
| 8-2 | 01171155 | 1.5" Union Adapter | 2 | 280.00 |
| 8-3 | 02020116 | O-Ring for 2" Union | 2 | 100.00 |
| 7 | 02011105 | O-ring for Diffuser | 1 | 150.00 |
| 8 | 01111009 | Diffuser | 1 | 280.00 |
| 9 | 89021704 | Impeller Screw with O-ring | 1 | 130.00 |
| 10 | 01311007 | Impeller SC050(110V/60HZ) & (220V/60HZ) | 1 | 1,090.00 |
| 10 | 01311008 | Impeller SC075(110V/60HZ) & (220V/60HZ) | 1 | 1,090.00 |
| 10 | 01311009 | Impeller SC050(220V/50HZ) & (380V/50HZ)/SC100(110V/60HZ) & (220V/60HZ) | 1 | 1,090.00 |
| 10 | 01311010 | Impeller SC075(220V/50HZ) & (380V/50HZ)/SC150(110V/60HZ) & (220V/60HZ) | 1 | 1,090.00 |
| 10 | 01311011 | Impeller SC100(220V/50HZ) & (380V/50HZ)/SC200(110V/60HZ) & (220V/60HZ) | 1 | 1,090.00 |
| 10 | 01311012 | Impeller SC150(220V/50HZ) & (380V/50HZ) | 1 | 1,090.00 |
| 10 | 01311013 | Impeller SC200(220V/50HZ) & (380V/50HZ) | 1 | 1,090.00 |
| 11 | E020001 | 3/4"Mechanical seal - Year2022 | 1 | 1,100.00 |
| 12 | 02011098 | O-Ring for Range | 1 | 280.00 |
| 13 | 01111008 | SC Pump Range | 1 | 1,100.00 |
| 14 | 01021104 | Ring Lock Nut | 1 | 1,100.00 |
| 15 | 02011096 | Motor Slinger | 1 | 130.00 |
| 16 | 89021705 | Motor SC050(220V/50HZ) | 1 | - |
| 16 | 89021706 | Motor SC075(220V/50HZ) | 1 | - |
| 16 | 89021707 | Motor SC100(220V/50HZ) | 1 | - |
| 16 | 89021708 | Motor SC150(220V/50HZ) | 1 | - |
| 16 | 89021709 | Motor SC200(220V/50HZ) | 1 | - |
| 16 | 89021801 | Motor SC050(220V/60HZ) | 1 | - |
| 16 | 89021802 | Motor SC075(220V/60HZ) | 1 | - |
| 16 | 89021803 | Motor SC100(220V/60HZ) | 1 | - |
| 16 | 89021804 | Motor SC150(220V/60HZ) | 1 | - |
| 16 | 89021805 | Motor SC200(220V/60HZ) | 1 | - |
| 16 | 89022001 | Motor SC050(380V/50HZ) | 1 | - |
| 16 | 89022002 | Motor SC075(380V/50HZ) | 1 | - |
| 16 | 89022003 | Motor SC100(380V/50HZ) | 1 | - |
| 16 | 89022004 | Motor SC150(380V/50HZ) | 1 | - |
| 16 | 89022005 | Motor SC200(380V/50HZ) | 1 | - |
| 16 | 89021901 | Motor SC050(110V/60HZ) | 1 | - |
| 16 | 89021902 | Motor SC075(110V/60HZ) | 1 | - |
| 16 | 89021903 | Motor SC100(110V/60HZ) | 1 | - |
| 16 | 89021904 | Motor SC150(110V/60HZ) | 1 | - |
| 16 | 89021905 | Motor SC200(110V/60HZ) | 1 | - |
| 17 | 01021022 | Opening Key | 1 | 280.00 |
| 18 | 01111007 | Base | 1 | 660.00 |
| 19 | 89021311 | Cable Box for SC Pump | 1 | 880.00 |
| 20 | 89021505 | Cable Box for SC/Si / S7/ SD 110V | 1 | 1,320.00 |
| 21 | 04016019 | Capacitor for SC050 & SS/SD/SG/S1075 Pump (110V) | 1 | 2,420.00 |
| 21 | 04016021 | Capacitor for SC075 & SS/SD/SG/ST100-124 Pump (110V) | 1 | 3,190.00 |
| 21 | 04016022 | Capacitor for SR/SB10-15 & SC100-150 Pump (110V) | 1 | 3,190.00 |
| 21 | 04016023 | Capacitor for SR/SR20-30 & SC200 Pump (110V) | 1 | 3,410.00 |
| 21 | 04016010 | Capacitor for SS/SD/SG/SP/S1075 & SC050 Pump | 1 | 1,100.00 |
| 21 | 04016012 | Capacitor for SS/SD/SG/SP/ST100-120/ SC075 | 1 | 1,430.00 |
| 21 | 04016014 | Capacitor for SR/SR10.SB15/ SC100/ SC150 | 1 | 1,760.00 |
| 21 | 04016015 | Capacitor for SR/SR20 & SC/EPH200 & SPH200 Pump | 1 | 1,980.00 |
| 22 | 01031007 | Cooling Fan for SC SR/SR10.SR/SR15 | 1 | 150.00 |
| 23 | 01031009 | Fan Cover for SR/SR10.SR/SR15 Pump | 1 | 660.00 |
| 24 | 01031002 | Fan Cover for SR/SR10.SR/SR15 Pump | 1 | 660.00 |
| 25 | 02011104 | O-Ring for 1.5" Union | 2 | 150.00 |
Note: 4* 89280105B is 1.5" Union in Black Colour
4* 89280105W is 1.5" Union in White Colour
4* 89280105W is 1.5" Union in White Colour
