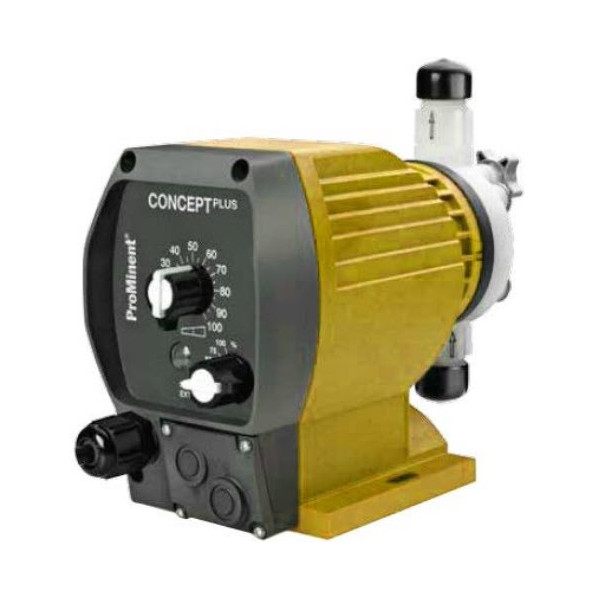

CNPB 1601 16 Bar 1.10 L/Hr  Concept Plus Series

The ProMinent Concept Plus Series covers a capacity range of 0.74 – 21.9 l/h at pressure up to 16 bar It’s compact construction and features make it ideal for use in flow proportional or on/off control applications The Concept Plus mounts easily onto a tank or wall bracket. Adjustment of the pump capacity is via the stroke length in the range of 10-100% or can be set at 1 of the 4 stroke frequency settings. This gives an adjustment ratio of 40:1

Pump capacity at medium back pressure

SPECIFICATIONS
TypeType Pump capacity at max back pressurePump capacity at medium back pressureStroke rateConnection size (out x in)

suction

lift

barl/hml/strokebarl/hml/strokestrokes/min.mmm WS
CNPB 1000100.740.0750.970.091806x46
CNPB 1601161.100.1081.40.131806x46
CNPB 1602161.500.1081.90.132406x46
CNPB 1002102.100.1952.60.241806x45
CNPB 1003103.000.2154.30.242406x45
CNPB 070473.900.363.54.40.411806x44
CNPB 070575.200.363.55.870.592406x44
CNPB 030939.000.831.5131.21808x52
CNPB 0312312.000.831.517.312408x52
CNPB 02151.516.401.45118.31.71808x51.5
CNPB 02231.521.901.52125.21.632408x51.5
  • Electrical: 100V-230V, 50/60Hz, 10-15W, 0.2-0.5A , IP65
  • Includes: Injection valve, Foot valve, 2m suction line ,5m discharge line, built in air bleed valve Reproducibility accuracy +-2% (When used in accordance with operating instruction & no change in back pressure)
  • Optional: External control (Pulse contact and Pause Function) via Retrofit kti
