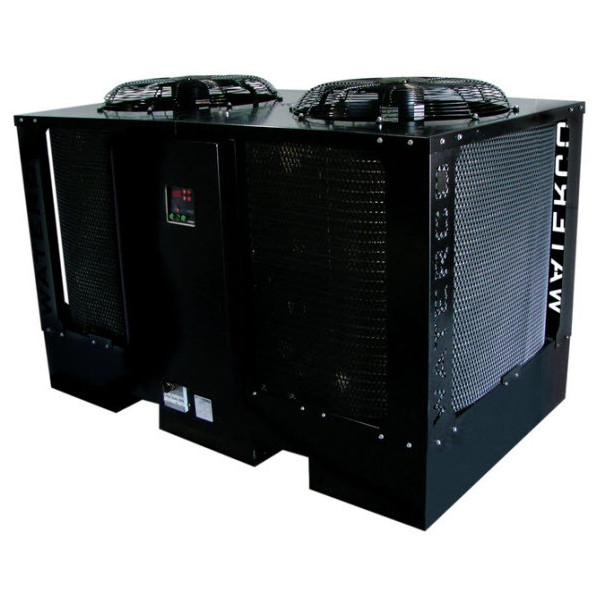

Waterco ElectroHeat Pro 97Kw

Waterco

27883803

10011135

New product

01/12/2024 0:00:00 AM

PayTranSetSupport
SecurityDeliveryServiceSupport

>>สินค้าจัดส่งจาก กทม

>>ช่างบริการ/ติดตั้ง จาก กทม

Rating
  • Read reviews (1)

฿1,885,000.00

>>ราคาพิเศษโปรดติดต่อเรา

ติดต่อสอบถาม


AddLine Tel

สินค้าและบริการ

Description

Waterco ElectroHeat Pro 100Kw

Specifications
Model NumberPRO100
Nominal Heating Capacity97KW (331,000 BTU)
Test Lab (26/26/80)97KW (331,000 BTU)
Test lab (15/26/70)67 kW (229,000 BTU)
Test Lab (10/26/63)58 kW (198,000 BTU)
Compressor (HP)(2 x) 11HP
ManufacturerSanyo
Compressor numberC-SCP360H38A
Water Flow & Plumbing Characteristics
Water Bypass TypeExt. Field Install
Min./Max. Water Flow Rate (LPM)500-680
Min./Max. Water Inlet Temperature (°C)14° - 40°
Plumbing Connection Size (Slip)80mm / 3” PVC
Electrical Characteristics
50Hz Dual Rated Supply Voltage (VAC)380-415V
Supply Voltage Phase3
Unit run current (AMP)29.5
Power consumption (kW)16.12
Coefficient of Performance @ 26/26/80 (COP)*6.4
Min./Max. Air Inlet Temperature (°C)6° / 40°
Refrigerant Characteristics
Refrigerant TypeR-410A
Physical Characteristics
Cabinet ConstructionPowder coat sheet metal
ColorBlack
Weight (kg.)453
Dimensions (mm)1730W-1090L –1120H
Noise Emission Characteristics
Noise Emission (dBA)69 @ 1metre & 59 @ 3 metres
** (26/26/60) = Air Temp: 26° / Water Temp 26° / Humidity 60%
Waterco ElectroHeat Pro 100Kw
Waterco ElectroHeat Pro 100Kw
Waterco ElectroHeat Pro 100Kw

Fans

  • Twin 660mm fans for maximum airflow
  • Low noise emissions 69dBA @ 1 metre
Waterco ElectroHeat Pro 100KwEvaporators
  • Twin evaporators for enhanced heat absorption
  • Automatic hot gas de-icing for cold climates
Waterco ElectroHeat Pro 100KwCompressor
  • Twin high performance 11HP
  • Sanyo hermetic scroll compressors
Waterco ElectroHeat Pro 100Kw

Control Panel

  • Electronically controlled temperature management
  • ontinuous digital temperature display
  • Phase and compressor monitoring
Waterco ElectroHeat Pro 100Kw

Heat Exchangers

  • Six titanium coiled
  • exchangers for maximum heat
  • transfer and protection against corrosion
Waterco ElectroHeat Pro 100Kw

Water Connection

  • Easy to connect single in/out 80mm (3”) water connections.
  • Integral flow switch -protecting equipment
    from operation when no flow is detected
Waterco ElectroHeat Pro 100Kw

Electrical Connections

  • Easy cable entry and electrical connection access
Waterco ElectroHeat Pro 100Kw

Cabinet

  • Made from heavy duty powder coat sheet metal
  • Easy installation and relocation with allowance for forklift tynes
Waterco ElectroHeat Pro 100Kw

Cost Effective Heating

Save up to 50% over natural gas, 80% over propane
gas and 500% over electric element pool heater running costs compared to heat pumps.
