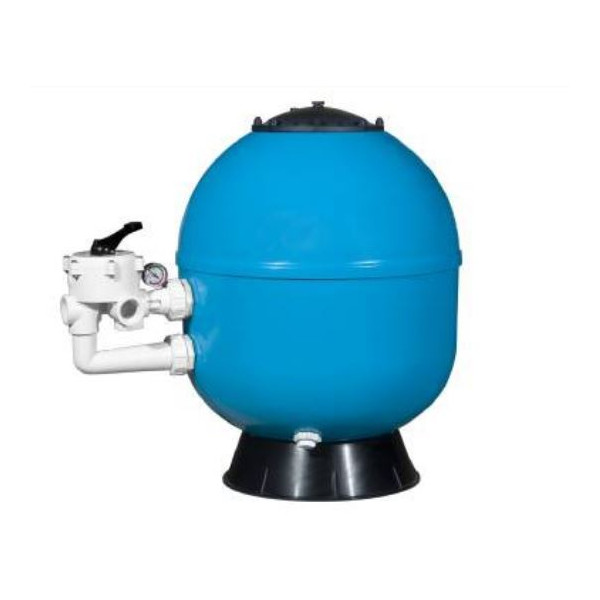

ถังกรองทราย Kripsol AK900

Kripsol

Kripsol AK900

100033

New product

02/21/2022 0:00:00 AM

Pay Tran Set Support
Security Delivery Service Support

฿40,000.00

description

ถังกรองทราย Kripsol AK 900.c

  • Brand: Kripsol

  • Model Number: AK 900.c

  • Connection 2"

  • Flow : 31.5 m3/h

  • Sand : 325Kg

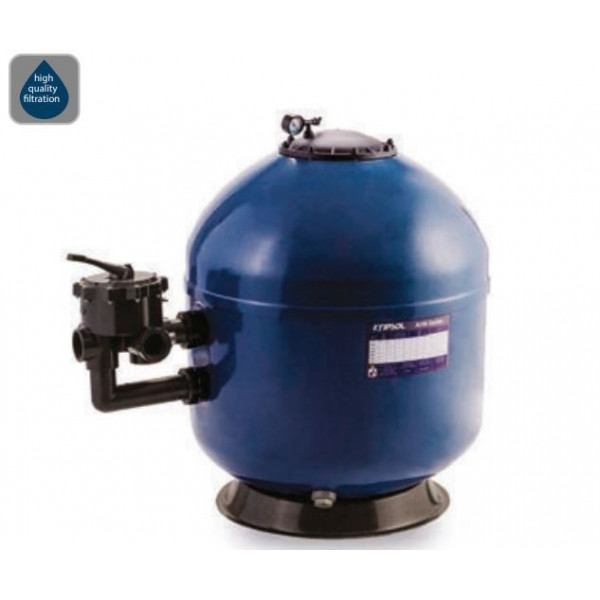

Kripsol ak series filter

» A quality solution available in Side and Top versions

» 6-way valve included

» Optimal distribution of water over the bed, thanksto the Dual-Side diuser

» Quick-connect collector arms, easy to replace

» Internal monoblock element, without slip fittings

» Wide drain, no tools required for opening,easy maintenance

» Usage: for residential pools up to 189 m3

SPECIFICATIONS

Ref Connection Filtrationarea (m2)

Flowrate

(m³)

Sand(kg) Vitrafil Pools up to(m³)

Dimensions

(mm)

Vol(m³) Vol(m³)
A B C D E
AK400 1.5" 0.13 6.5 50 40 39 225 350 665 458 300 11 0.127
AK520 1.5" 0.21 10.5 100 90 63 305 430 775 458 300 15.5 0.242
AK640 1.5" 0.32 16 150 135 96 315 440 860 458 300 21 0.366
AK680 2" 0.36 19 175 150 114 320 455 900 605 300 25 0.406
AK760 2" 0.45 22.5 225 200 135 365 455 900 605 300 31 0.608
AK900 2" 0.63 31.5 325 290 189 365 505 900 605 300 40 0.902

Kripsol ak 520

Technical Specifications
Max. water temp 50 ºC
Operating pressure 0.5 - 1.3 bar
Maximum pressure 1.6 bar
Connection

1.5" (ø 520 mm - ø 640 mm)

2" (ø 760 mm - ø 900 mm)

Tank / Arms / Unions / Cover

Polyester with F.G./PP/ABS/PP

Granulometry of filter material

0.4 - 0.8 mm
