ถังกรองทราย Kripsol AK 640

Kripsol

AK 640

100031

New product

02/21/2022 0:00:00 AM

PayTranSetSupport
SecurityDeliveryServiceSupport

฿19,500.00

description

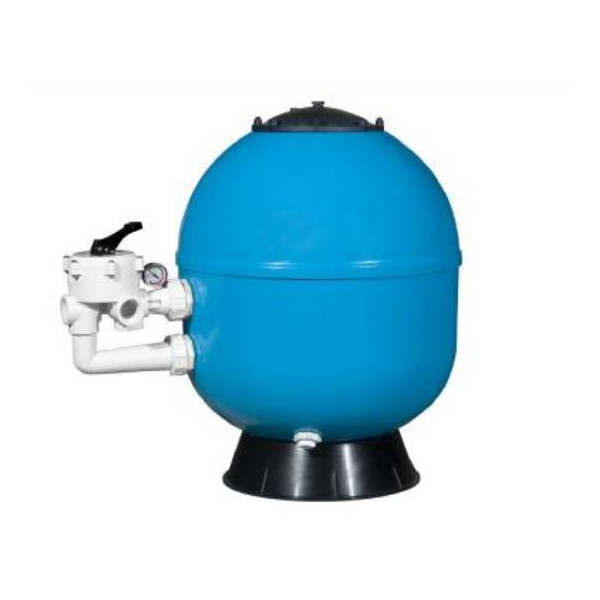

ถังกรองทราย Kripsol AK 640

  • Brand: Kripsol

  • Model Number: AK 640.c

  • Connection 1 1/2"

  • Flow : 16 m3/h

  • Sand : 150Kg

Kripsol ak series filter

» A quality solution available in Side and Top versions

» 6-way valve included

» Optimal distribution of water over the bed, thanksto the Dual-Side diuser

» Quick-connect collector arms, easy to replace

» Internal monoblock element, without slip fittings

» Wide drain, no tools required for opening,easy maintenance

» Usage: for residential pools up to 189 m3

SPECIFICATIONS

RefConnectionFiltrationarea (m2)

Flowrate

(m³)

Sand(kg)VitrafilPools up to(m³)

Dimensions

(mm)

Vol(m³)Vol(m³)
ABCDE
AK4001.5"0.136.5504039225350665458300110.127
AK5201.5"0.2110.5100906330543077545830015.50.242
AK6401.5"0.321615013596315440860458300210.366
AK6802"0.3619175150114320455900605300250.406
AK7602"0.4522.5225200135365455900605300310.608
AK9002"0.6331.5325290189365505900605300400.902

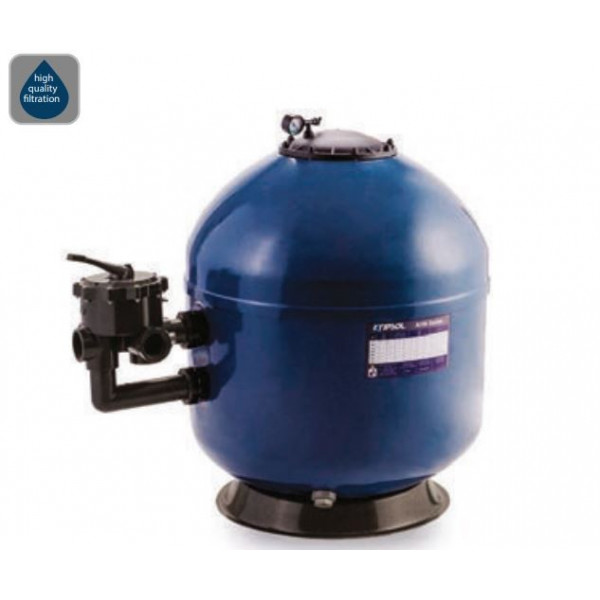

Kripsol ak 520

Technical Specifications
Max. water temp50 ºC
Operating pressure0.5 - 1.3 bar
Maximum pressure1.6 bar
Connection

1.5" (ø 520 mm - ø 640 mm)

2" (ø 760 mm - ø 900 mm)

Tank / Arms / Unions / Cover

Polyester with F.G./PP/ABS/PP

Granulometry of filter material

0.4 - 0.8 mm
